Roland Mobile UA USB Audio Interface Brand: Roland

• Audiophile-Grade Sound in Both PCM and DSD Formats

  The Mobile UA faithfully reproduces the finest sonic details and delivers optimal monitoring performance through all aspects of the mixing and editing processes. As a high-quality USB audio interface, it truly shines when listening to high-res sound sources. It supports both PCM (up to 352.8 kHz) and DSD (up to 5.6 MHz), and is unparalleled in offering un-dithered, un-truncated 32-bit floating point PCM audio from your DAW. And with 2.8 or 3.1 MHz DSD audio sources, you can enjoy native high-res audio playback with no resampling.

• Sublime Sound Delivered by Roland’s Proprietary S1lki DSP

  You’ll instantly notice the difference with the Mobile UA’s superior sound—it’s extremely smooth, provides exceptional imaging, and is devoid of any muddiness. The secret is Roland’s proprietary DSP technology called “S1LKi” (pronounced “silky”). Processes that are usually performed at the DA converter stage, such as sample rate conversion and various filter processes, are performed right in S1LKi. This enables DA conversions under near-ideal conditions, regardless of the sampling rate. Signal processing of the original file is performed optimally and with unprecedented musicality, and even 16-bit/44.1 kHz PCM files exhibit an astonishing level of sound quality.

• Premium Headphone Amp with Ultra-Powerful Output

  The Mobile UA’s stereo headphone amp delivers 158 mW of power on each channel, providing super-high output that produces more than enough volume, even when using high-impedance headphones. On stage and in other high dB situations, you won’t need a mixer or external headphone amp to ensure proper volume levels, giving you precise monitoring in just about any environment.

• Supports a Wide Range of Music Production Applications

  The Mobile UA offers four different modes of output to choose from based on your needs. This versatility is a huge advantage in music production settings. Normal two-channel mode allows two people to monitor the same audio with two sets of headphones, while four-channel mode provides two independent stereo channels, so you can use one of them for cue monitoring or a click track. Newly added in Version 2.0 is a two-channel balanced mode, which gives you a balanced stereo output for connecting to high-end devices.

• Listening is Pure Joy

  For simply enjoying high-res audio sources, the Mobile UA delivers excellent performance as a DA converter. It outputs DSD or PCM audio on two stereo channels, and you can interface with a variety of devices. With the new two-channel balanced mode, you’re able to connect with pro studio monitors that support balanced inputs. Alternately, you can use the Mobile UA as a headphone amp with balanced outputs. This allows you to monitor with the balanced-drive headphones popular with audio enthusiasts, creating a no-compromise audiophile listening system that travels anywhere.

• Reliable Low-Latency Audio Performance

  Roland’s highly acclaimed VS Streaming technology ensures low-latency operation with modern music applications. The Mobile UA makes the most efficient use of your computer’s processing power, keeping the CPU load to a bare minimum. With robust support for ASIO and Core Audio, you get the best performance with a wide variety of music production and listening platforms.

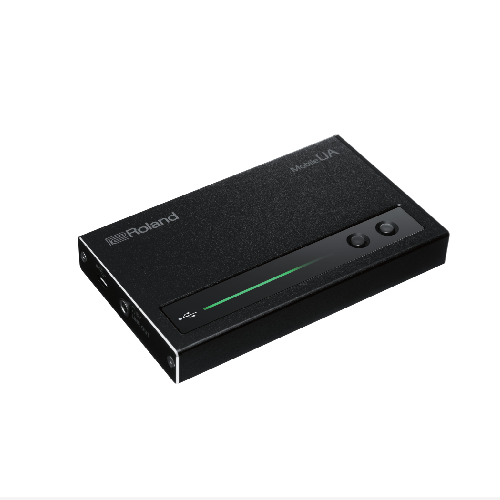

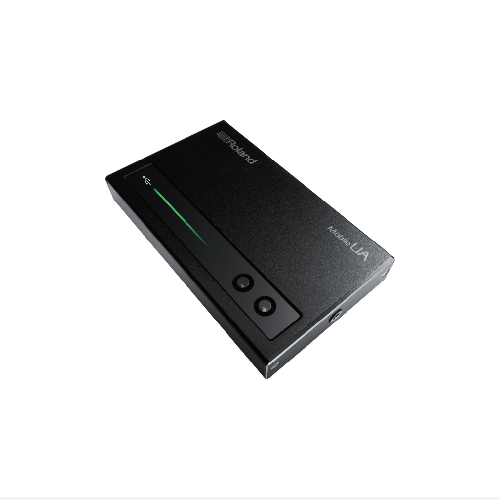

• Super-Lightweight and Compact Body Fits in Your Palm

  The Mobile UA fits in the palm of your hand and weighs only 130 grams, packing an exceptional level of quality into a surprisingly compact device. From the dual stereo mini-jacks that reside on each side and volume button with mute functionality to the beautifully designed high-resolution level indicators and USB bus power, the Mobile UA provides unprecedented performance anywhere life takes you.

SYSTEMNumber of Audio Playback ChannelsPCM format: 4 channels / 2channels (selectable by “Output Mode”)
DSD format: 2 channelsSignal ProcessingPCM format
PC interface: 32 bits
DA Conversion *1: 1 bit, 32 bits

*1 When “S1LKi Mode” is valid, DA conversion operates on 1 bit.

DSD format
PC interface: 1 bit
DA Conversion: 1 bitSampling RatePCM format
PC interface: 352.8 kHz *2, 192 kHz, 176.4 kHz, 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
DA Conversion *3: 3.072 MHz, 2.8224 MHz, 192 kHz, 176.4 kHz

*2 If the sampling rate is 352.8 kHz, the number of channels is limited to two channels, and playback is possible only via ASIO/Core Audio.
*3 When “S1LKi Mode” is valid, DA conversion operates on 3.072 MHz or 2.8224 MHz.

DSD format:
PC interface: 5.6448 MHz *4, 2.8224 MHz
DA Conversion: 2.8224 MHz

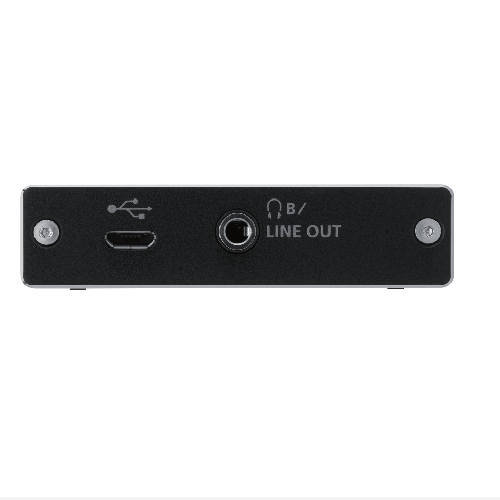

*4 5.6448 MHz DSD data is down-converted to 2.8224 MHz for playback.DSD Format Playback MethodDoP version 1.0InterfaceHi-Speed USBConnectorsPHONES jack: Stereo miniature phone type
PHONES/LINE jack: Stereo miniature phone type
USB port: USB Type micro BCHARACTERISTICSPHONES, PHONES/LINENominal Output Level: -4 dBu

Maximum Output Level: +14 dBu

Maximum Output Power:
158 mW + 158 mW (L + R, 40 ohms)
44 mW + 44 mW (L + R, 300 ohms)

Headroom: 18 dB

Frequency Response:
192.0 kHz: 20 Hz–60 kHz (+0/-0.4 dB), 20 Hz–90 kHz (+0/-3 dB)
176.4 kHz: 20 Hz–60 kHz (+0/-0.5 dB), 20 Hz–80 kHz (+0/-2 dB)
96.0 kHz: 20 Hz–44 kHz (+0/-0.2 dB)
88.2 kHz: 20 Hz–40 kHz (+0/-0.2 dB)
48.0 kHz: 20 Hz–22 kHz (+0/-0.2 dB)
44.1 kHz: 20 Hz–20 kHz (+0/-0.2 dB)

Residual Noise Level: -101 dBu typ. (IHF-A)

Dynamic Range: 115 dB typ.OTHERSPower SupplyUSB Bus PowerCurrent Draw500 mAAccessoriesOwner’s Manual
Leaflet “USING THE UNIT SAFELY”
USB cableSIZE AND WEIGHTWidth108.2 mm
4-5/16 inchesDepth65 mm
2-9/16 inchesHeight16 mm
0-11/16 inchesWeight300 g
0 lbs. 11 oz.
